Concealed Dropbolt – Drop Rod for Metal Gates

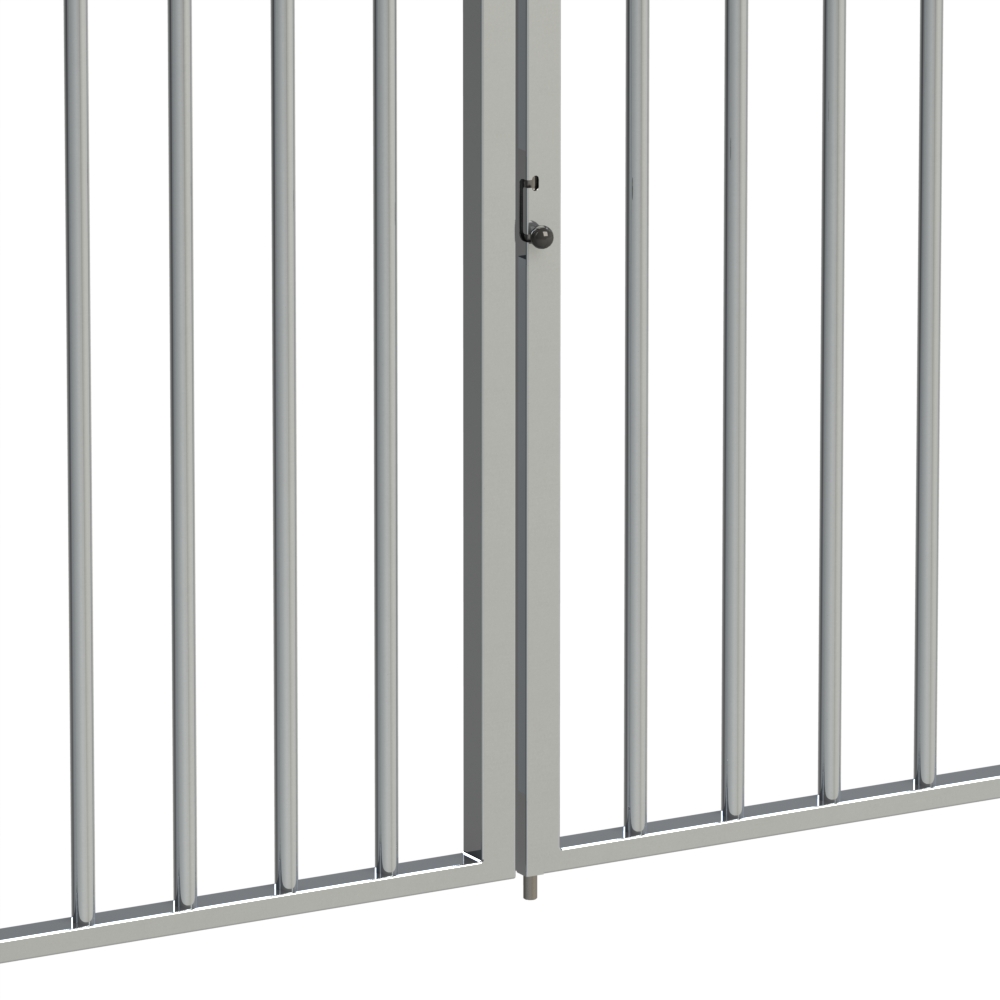

A very neat drop rod that can be fitted into either single or double gates. The concealed design means it suits a wide range of gate sizes and styles without looking out of place.
- Robust – The drop rod is inside the gate frame to prevent tampering

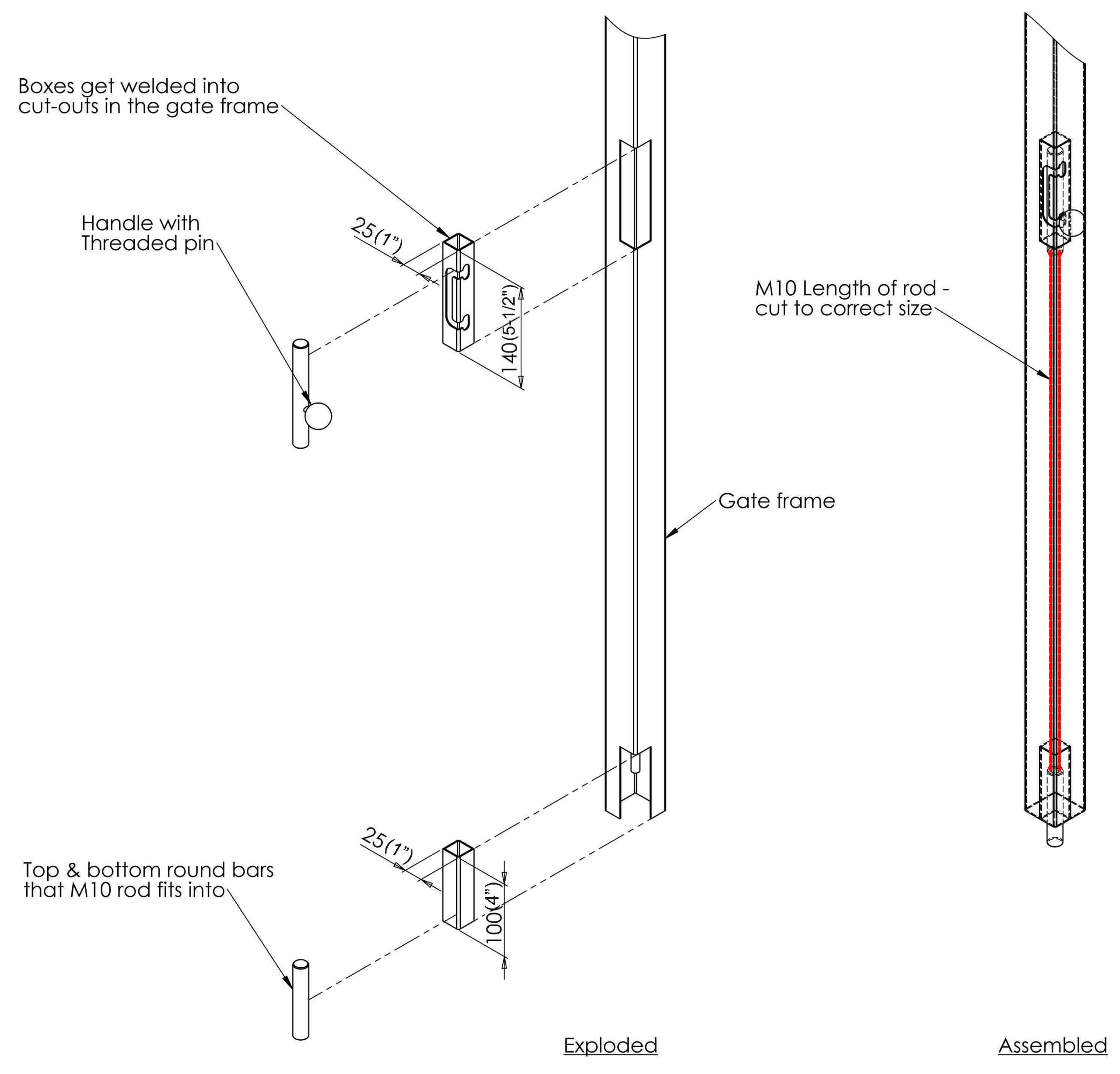

- Easy to fit – Assembled using M10 studding which can be cut to length for use on a variety of gate sizes
- Adaptable – Fits into any box section bigger than 30mm x 30mm.
- Innovative and secure – On the double gate version, the drop rod is lowered and rotated and locked in position. Closing the second gate prevents the Drop rod being unlocked.
Product Code
CDS – For single gates
CDD – For double gates
Included in the box
Lower bolt
Top bolt
Top housing
Lower housing
Handle
2x grub screws
*M10 studding not included with the product
