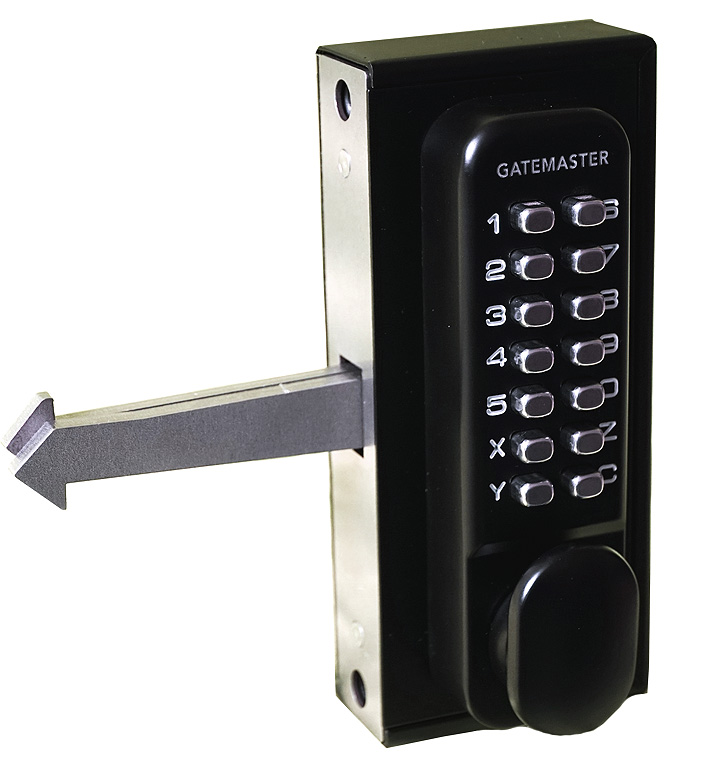

Sliding Gate Code Lock | Double-Sided Keypad

Strong gate lock designed especially for sliding gates, this is the double sided version with combination keypads on both sides of the lock. The sliding gate lock auto-latches into the keep when the gate is slid closed and is secure until the code is entered. The one-piece die-cast casing provides the complete locking mechanism with maximum protection against external elements. This lock is easily installed by drilling just three holes through the gate frame and bolting on the lock, please not 100mm gap behind the stile is required to fit the lock. (see spec sheet for full installation instructions).

• Available in three sizes SGLD40 for 40mm frames all the way up to SGLD60 for 60mm gate frames.
• Includes a keep to prevent access to the latch bolt when the gate is closed, this adds to the security and improves the overall appearance of the gate.
• One-piece die-cast casing designed for maximum protection against the elements.
• Auto-latching – Easily locks into place when the gate is slid shut.

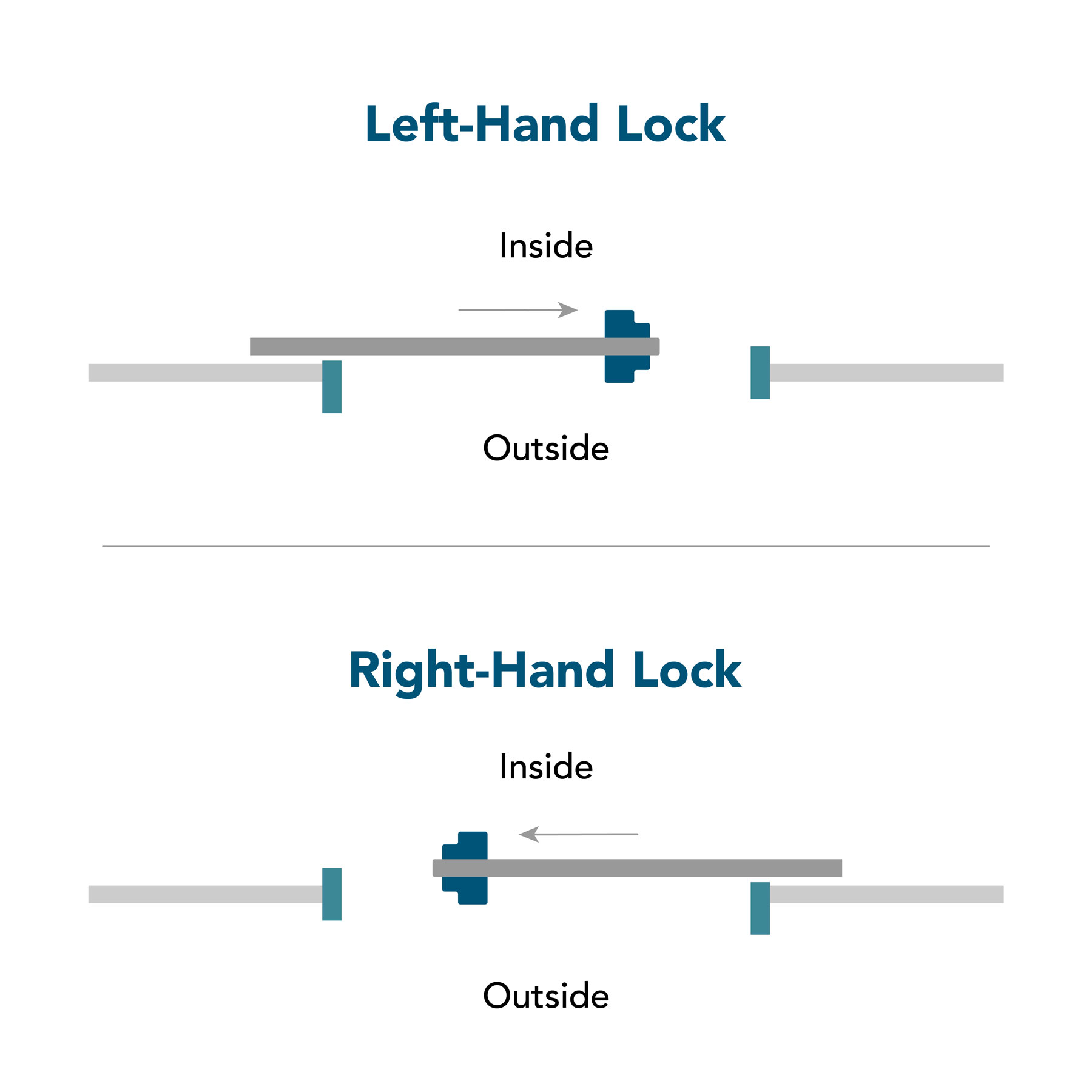

• Non-handed – suits both left and right hand gates.

Product Code

• SGLD40L – To fit 40mm gate frames, Left hand
• SGLD40R – To fit 40mm gate frames, Right hand
• SGLD50L – To fit 50mm gate frames, Left hand
• SGLD50R – To fit 50mm gate frames, Right hand
• SGLD60L – To fit 60mm gate frames, Left hand
• SGLD60R – To fit 60mm gate frames, , Right hand

Included in the box

2.5mm hex key + 3mm hex key
M8 fixing bolts
Face plate
Adjustable keep with self-expanding fasteners
Code changing pack

Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
