Sliding Gate Code Lock | Single-Sided Keypad

The Sliding Gate Lock is a high quality, heavy duty lock to secure any unit with a sliding gate. No power needed so no complicated wires, simply drill 3 holes and bolt on to the gate. The one-piece die-cast casing provides maximum resistance against the elements. This product is provided with a keep which increases security as it prevents access to the latch bolt when the gate is closed and improves the overall appearance of the gate.

• Easy install – Drill 2 holes for the fixings and another hole for the latch arms, slide the lock through the holes and secure.
• Auto-latching – When you slide the gate closed the latch arms automatically catch and secure into the keep.
• Hold-back function – Available with the single-sided version only. On the back of the lock is a button to hold the latch in an open position.

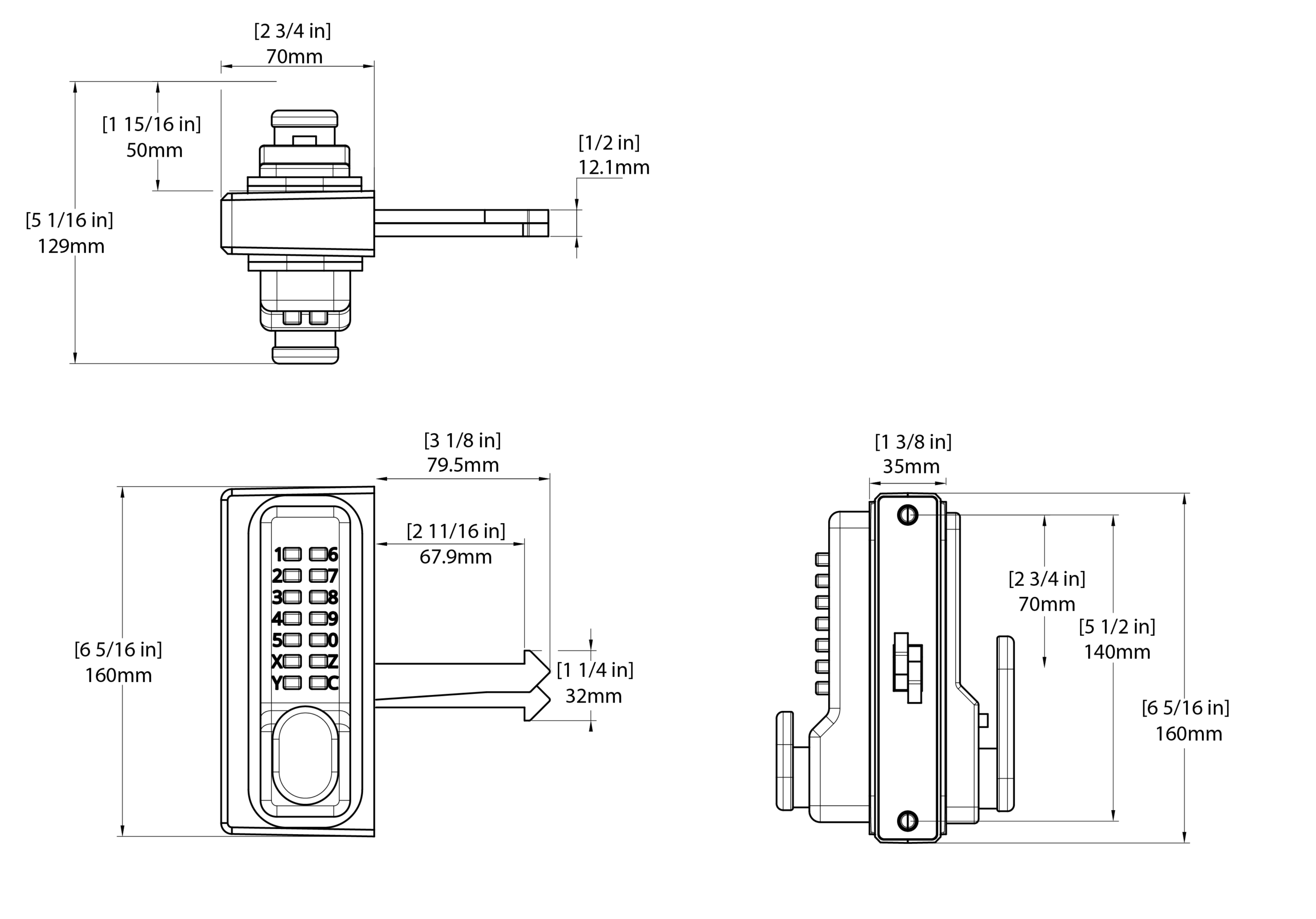

Three sizes available from 40mm to 60mm depending on the size of latch arms needed to reach through the gate frame. 100mm gap behind the stile is required to fit the lock. Left or right handing will depend on if the gate slides from left to right or right to left when looking at the gate from the outside. If you are not sure on the handing, look at the pictures provided or contact us for confirmation.

Product Code

SGLDS40L –  To fit 40mm gate frames, left hand
SGLDS40R – To fit 40mm gate frames, right hand
SGLDS50L –  To fit 50mm gate frames, left hand
SGLDS50R – To fit 50mm gate frames, right hand
SGLDS60L –  To fit 60mm gate frames, left hand
SGLDS60R – To fit 60mm gate frames, right hand

Included in the box

2.5mm hex key + 3mm hex key
M8 fixing bolts
Face plate
Adjustable keep with self-expanding fasteners
Code changing pack

Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
