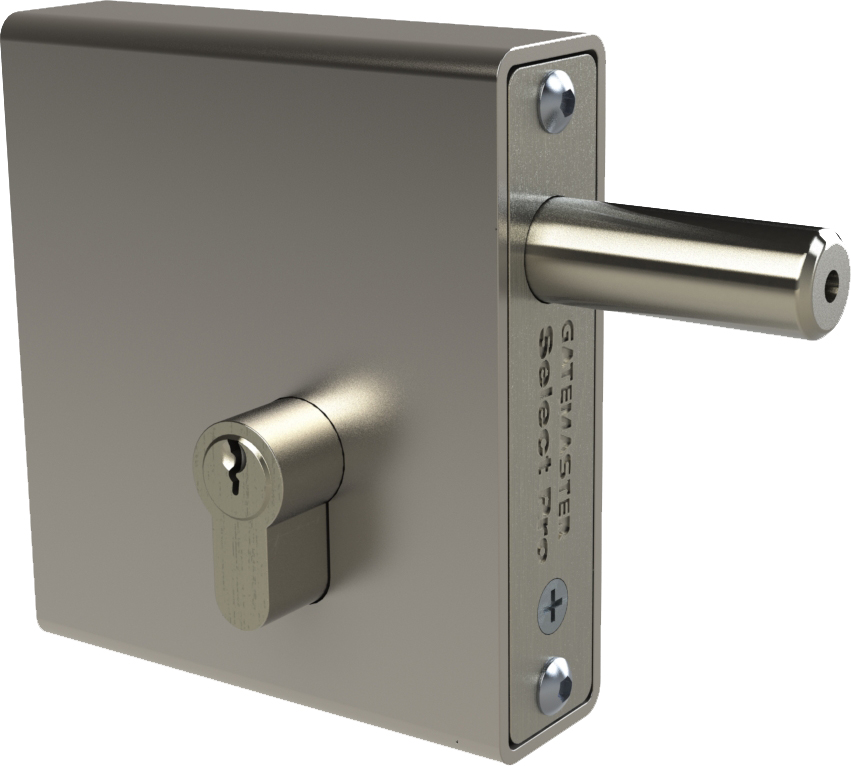

Weld-In Deadlock
Solid and reliable lock with a single keyed deadlocking action that moves 30mm with one turn of the key. This weld-in lock can be galvanised or powder coated with the rest of the gate. Just remove the internal lock mechanism and weld the case in place before painting or powder coating.
- Secure – Stainless steel deadbolt which moves 30mm with one turn of the key.
- Adaptable – Deadbolt is adjustable in length for precise fitting on site.
- Keyed both sides for easy access
- Lock case is made from 2.5mm steel.

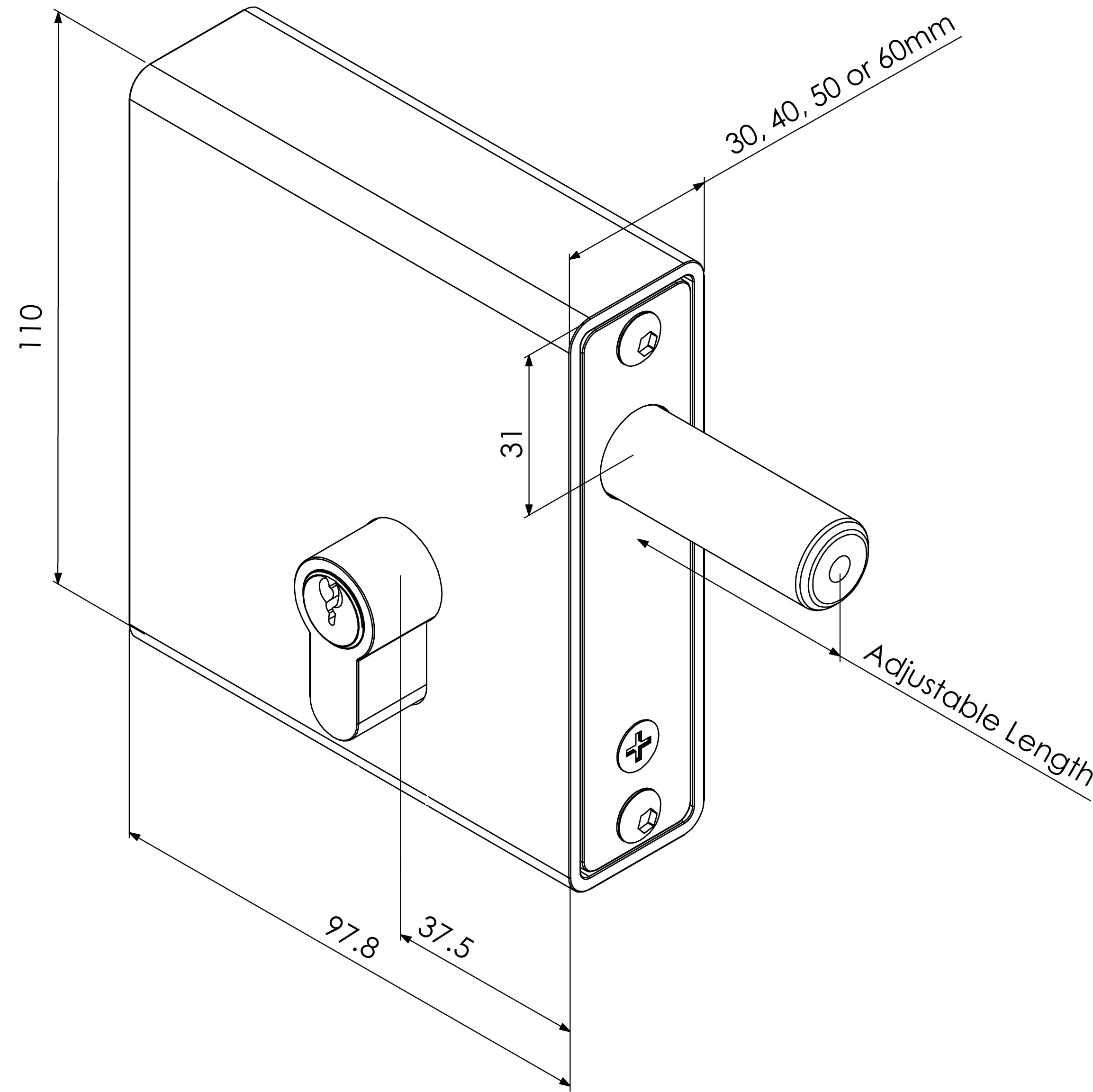

- 4 lock case widths available to suit different box section sizes – 30mm, 40mm, 50mm and 60mm.
Product Code
SWD1630 – 30mm wide gate frames
SWD1640 – 40mm wide gate frames
SWD1650 – 50mm wide gate frames
SWD1660 – 60mm wide gate frames
Included in the box
1x3mm hex key
M5 fixing bolts
Deadbolt
Keep plate (self-drilling fasteners)
A set of keys (3)
