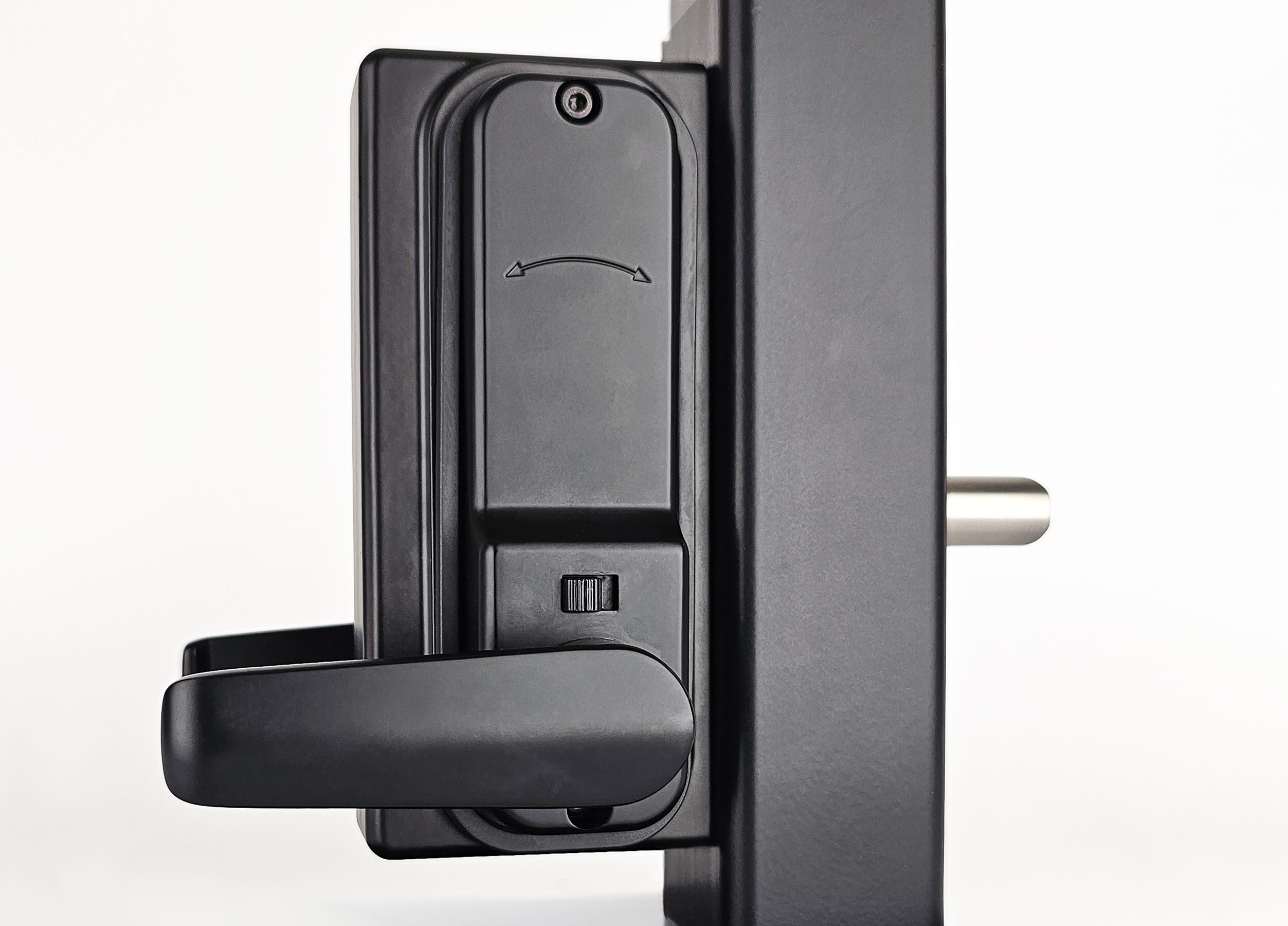

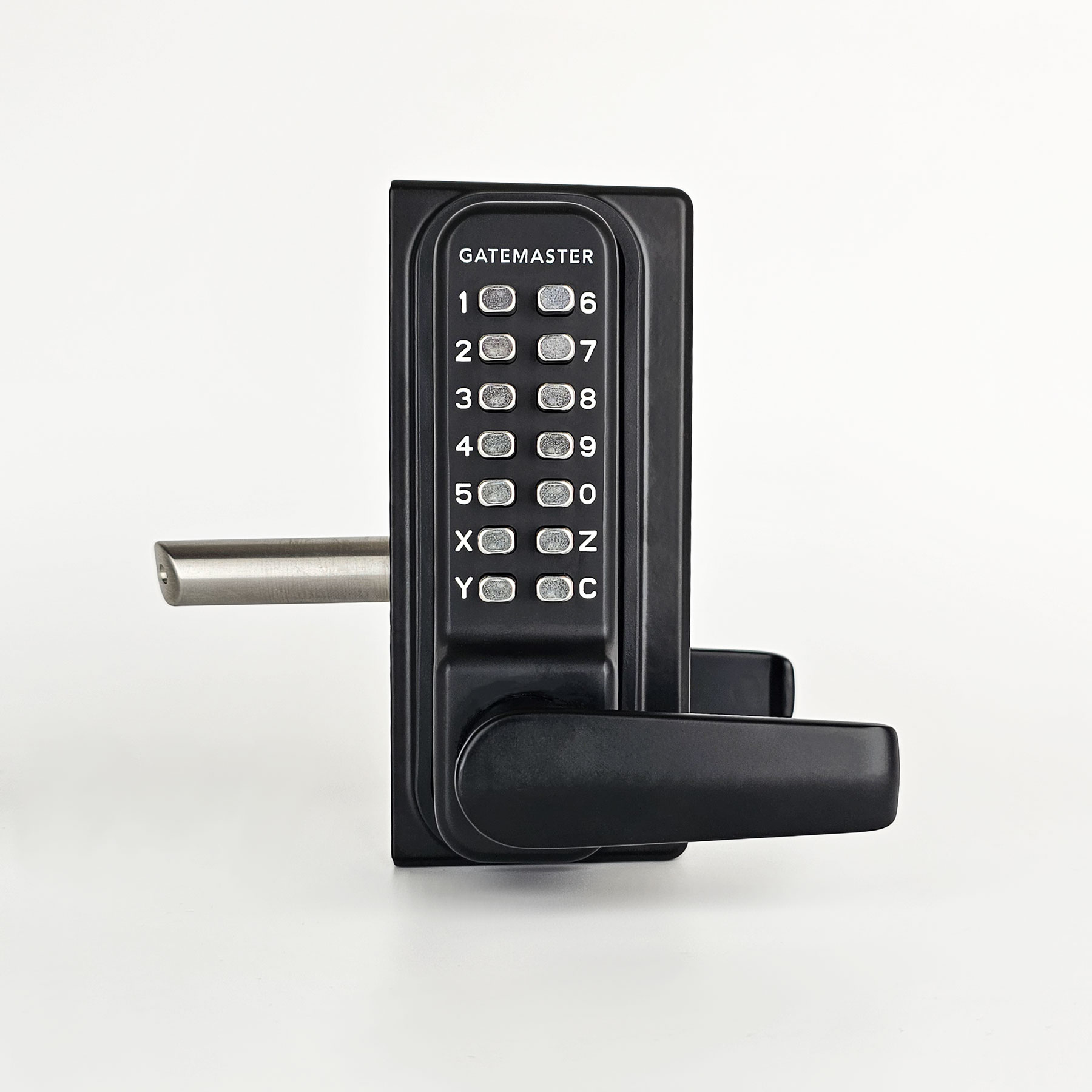

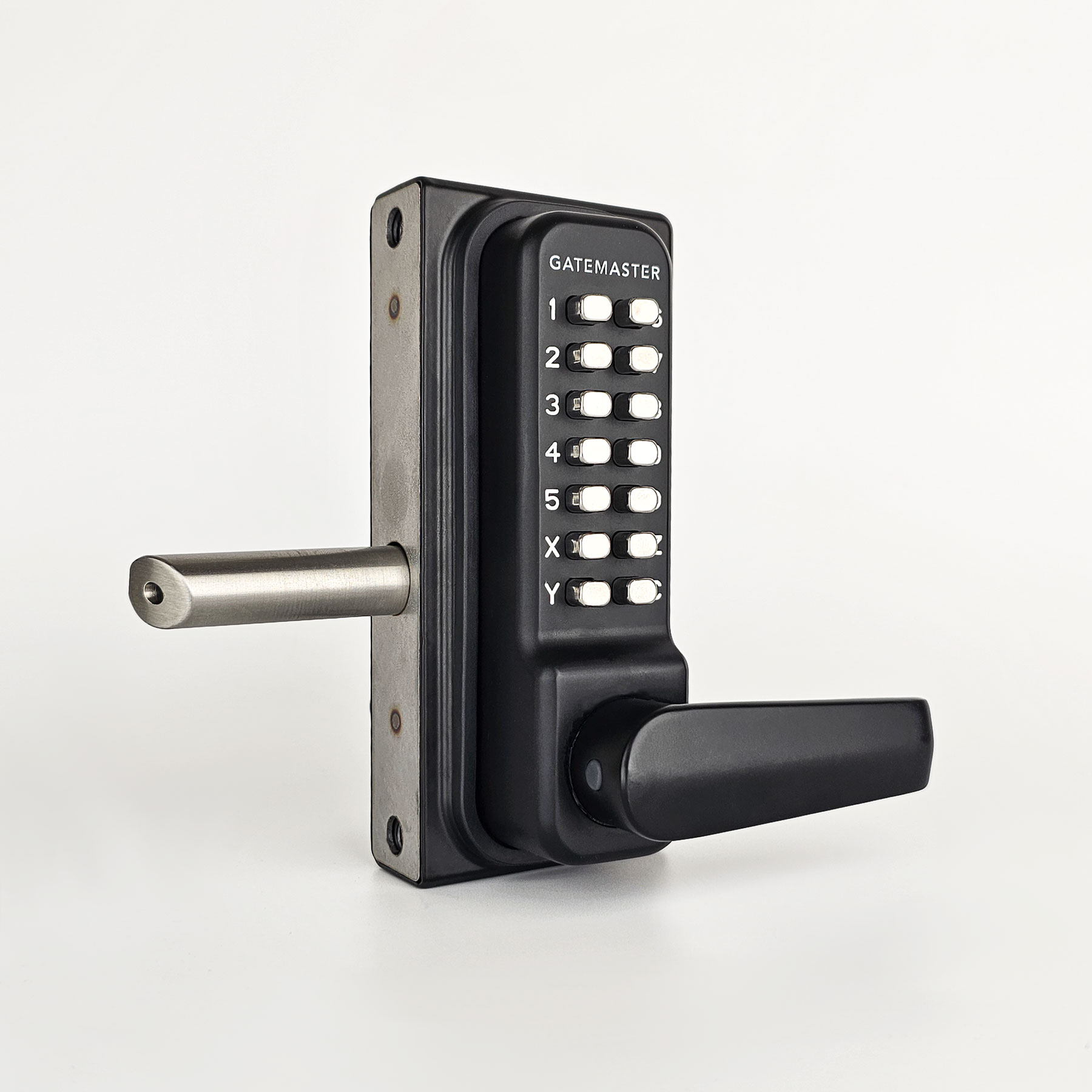

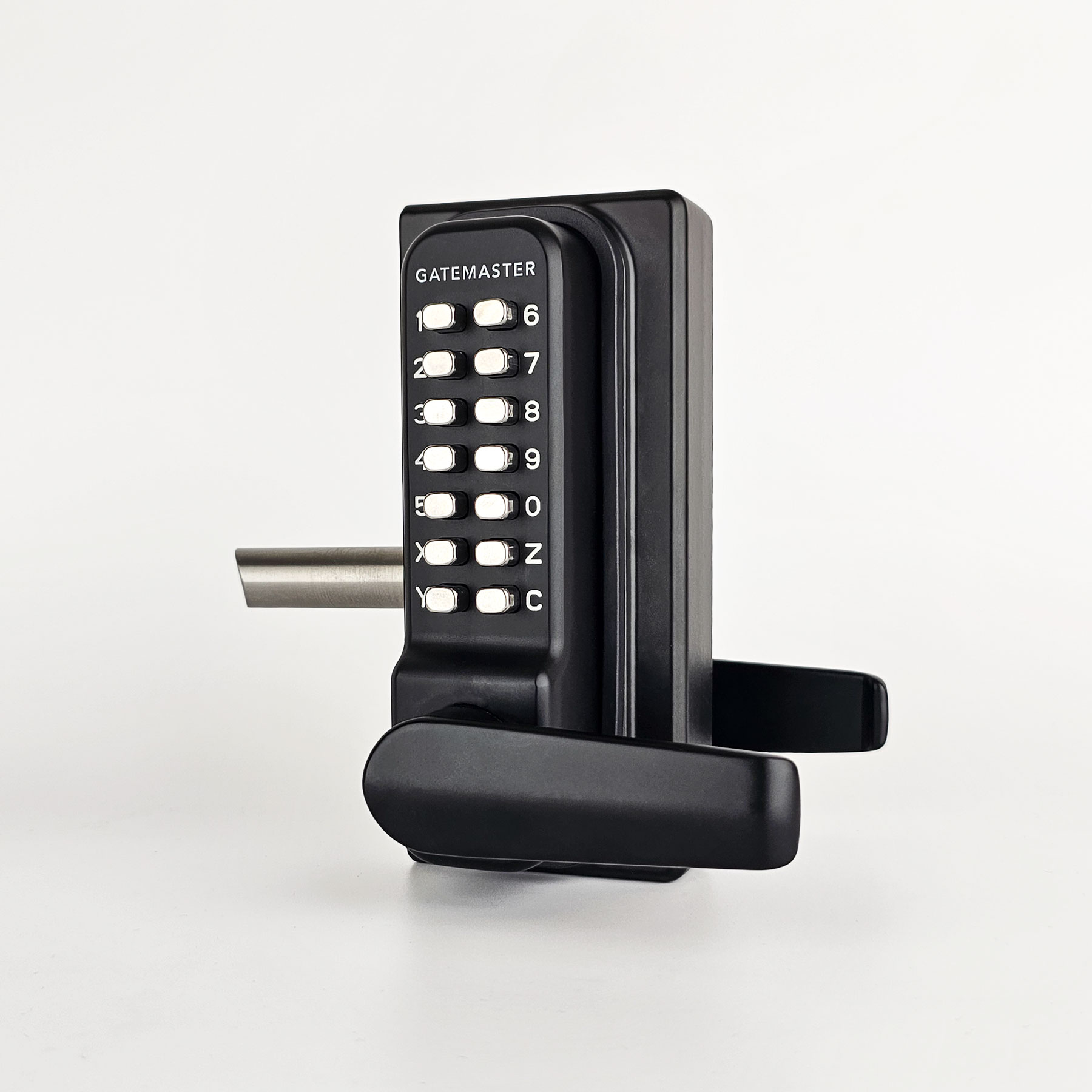

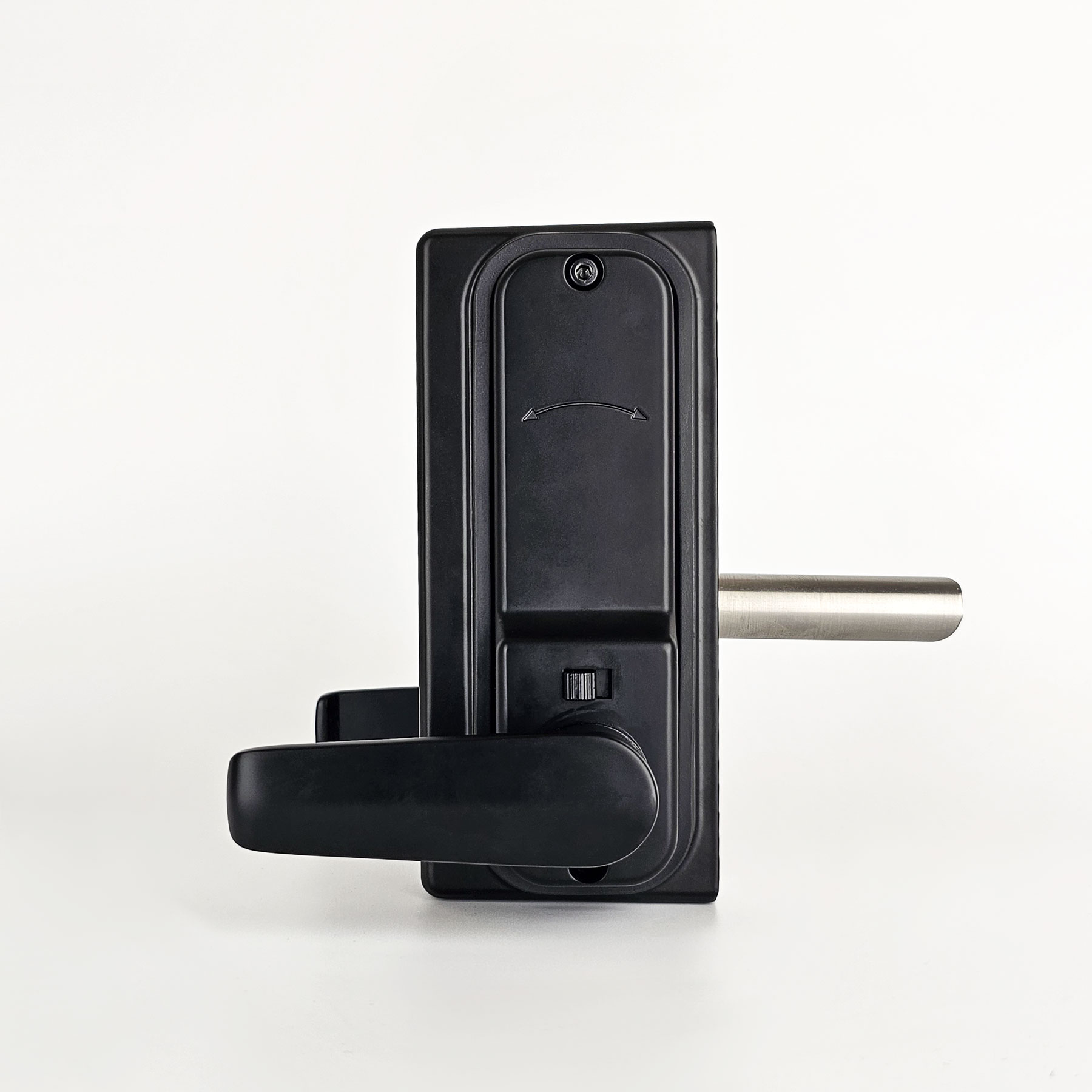

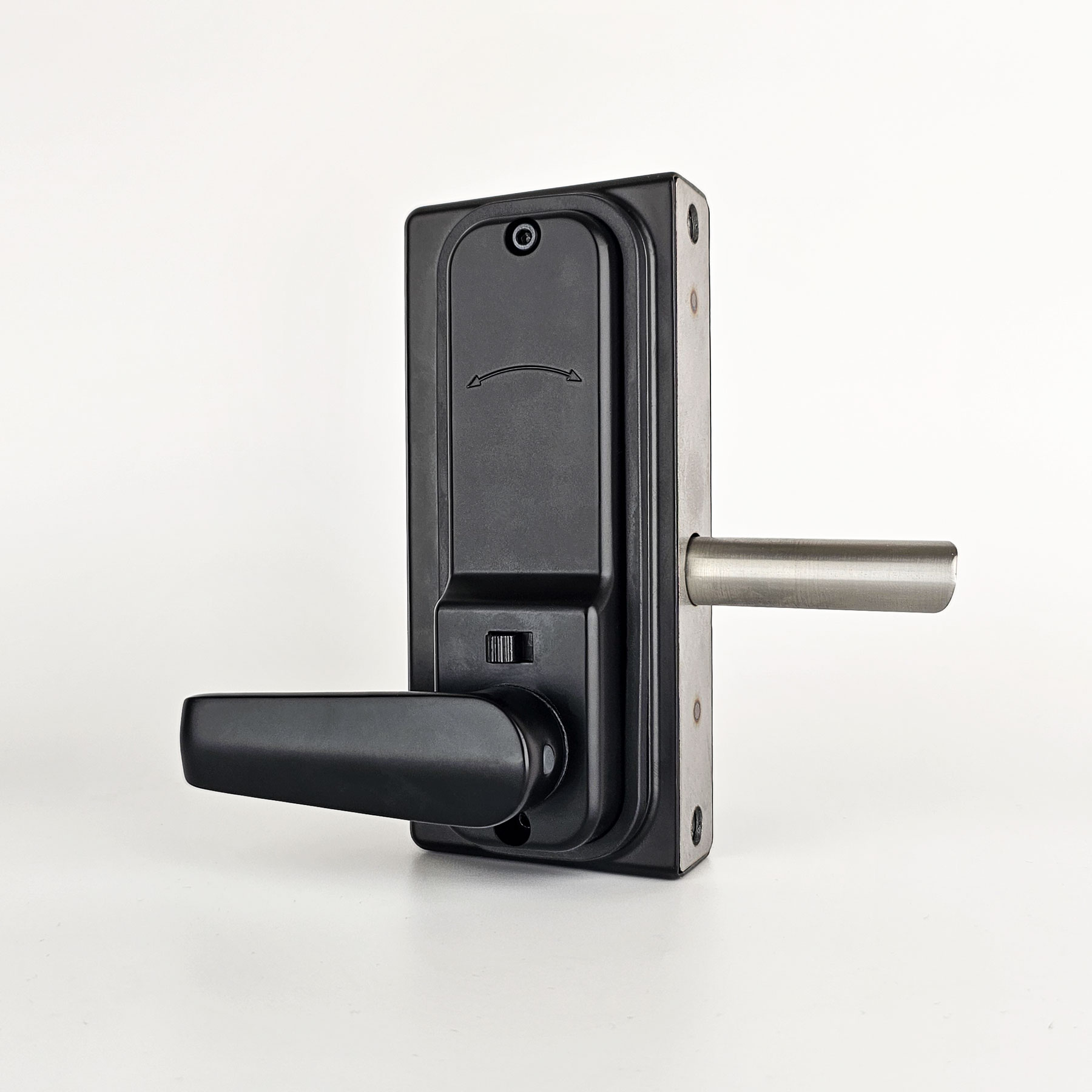

Superlock 2.0 Delta Handle | Single-Sided Keypad

The Superlock 2.0 Delta Handle has been upgraded to deliver a sleeker, smoother look. The digital gate lock features a mechanical keypad with handles that are designed to be easily operated by those with limited dexterity.

Refined Handle Design

The redesigned low-profile handles give the lock a smoother, sleeker finish offering improved aesthetics and user comfort.

Upgraded Internal Mechanism

The inside components have been upgraded for enhanced performance and greater longevity under frequent use.

Effortless Operation

The ergonomic handle design makes opening and closing of the gate lock effortless.

Anti-Climb Handles

The handle is designed to prevent them from being used as a foothold for climbing over the gate, ensuring unwanted guests stay out.

Strong One-Piece Casing

The new casing is built from a single-body design thus eliminating joints and welds ensuring maximum strength and durability.

Other features:

• Secure hold – Stainless steel latchbolt which latches 15mm into the gate post for maximum holding strength
• Convenient – gate lock features a rear button which holds the latch open when required.

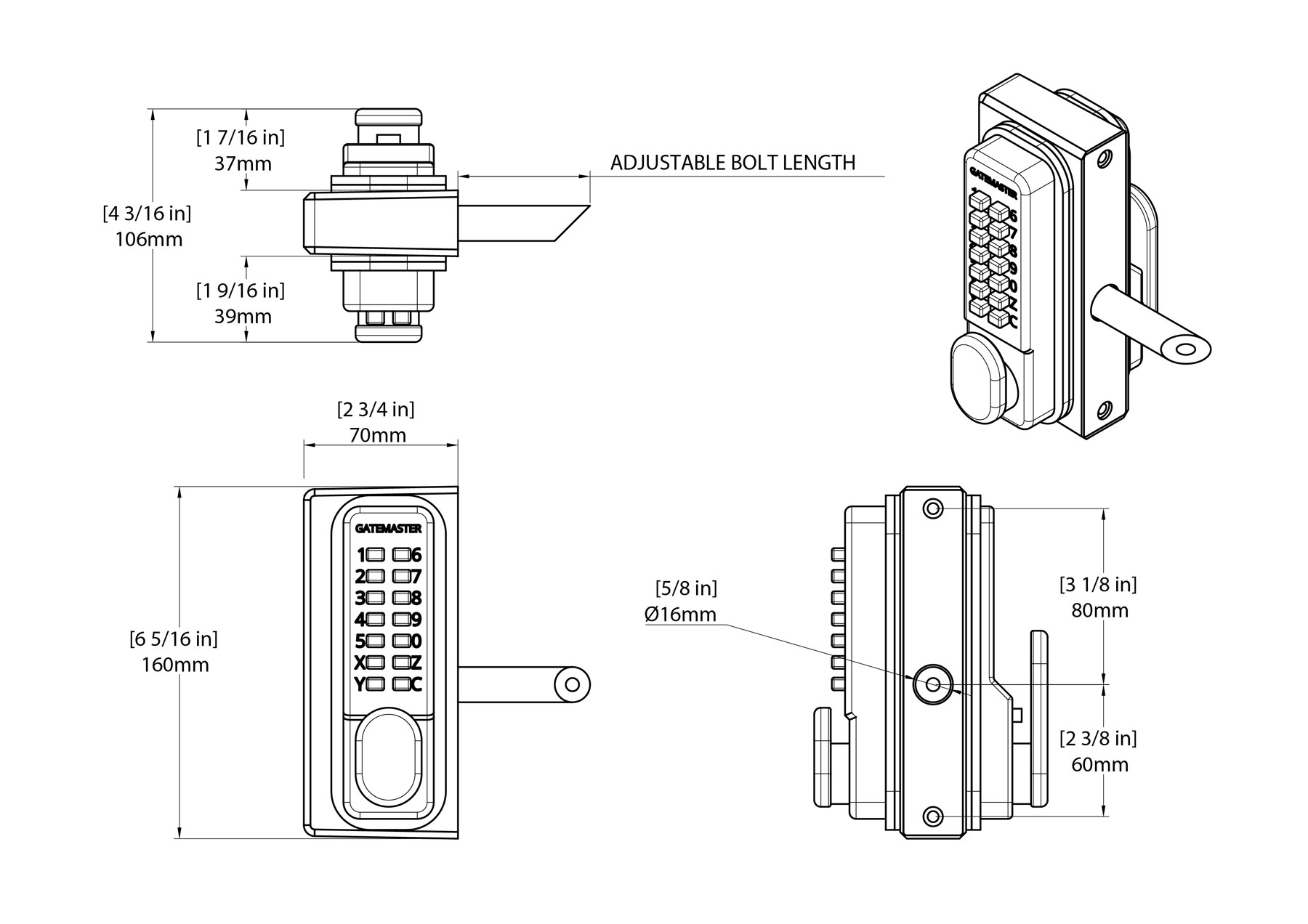

• Two frame options – 1030 for 10 to 30mm flat bar or box section gate frames and 4060 for 40 to 60mm gate frames
• Compatible with the Superlock Lever Handle Security Shroud for extra security.
• Pair with our Superlock Gapless Keep, Superlock Interlocking Keep or Superlock Secure Keep to secure the latch more thoroughly.
• Easy to install – simply drill three holes into the gate frame and bolt on, see how easy it is: Installation video
• Also available in a green casing

Product Code

BDGSD1030L – For 10-30mm gate frames, Left hand
BDGSD1030R – For 10-30mm gate frames, Right hand
BDGSD4060L – For 40-60mm gate frames, Left hand
BDGSD4060R – For 40-60mm gate frames, Right hand

*For green casing add ‘-G’ to the product codes*

Included in the box

2.5mm hex key + 3mm hex key
M8 fixing bolts
Face plate
Latchbolt
Strike plate (self-drilling fasteners)
Code changing pack

Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
