Weld-In Latch Deadlock
The weld in latch deadlock has a latch and deadlock on the single bolt. The handles operate the latch and the key can then be turned to extend the deadbolt 30mm into the gate post to secure the gate. This weld-in lock can be galvanised or powder coated with the rest of the gate. Just remove the internal lock mechanism and weld the case in place before painting or powder coating.
- Secure – Stainless steel latchbolt which springs 13mm into the gate post and then moves to 30mm when you turn the key and deadlock the lock
- Adjustable – Latchbolt is adjustable in length for precise fitting on site and can be rotated for left or right handed gates
- Strong – Welding the lock into the gate is the most secure method of fixing a lock into a gate
- Durable – Fitted with a brass latchbolt bearing to ensure long lasting, smooth action

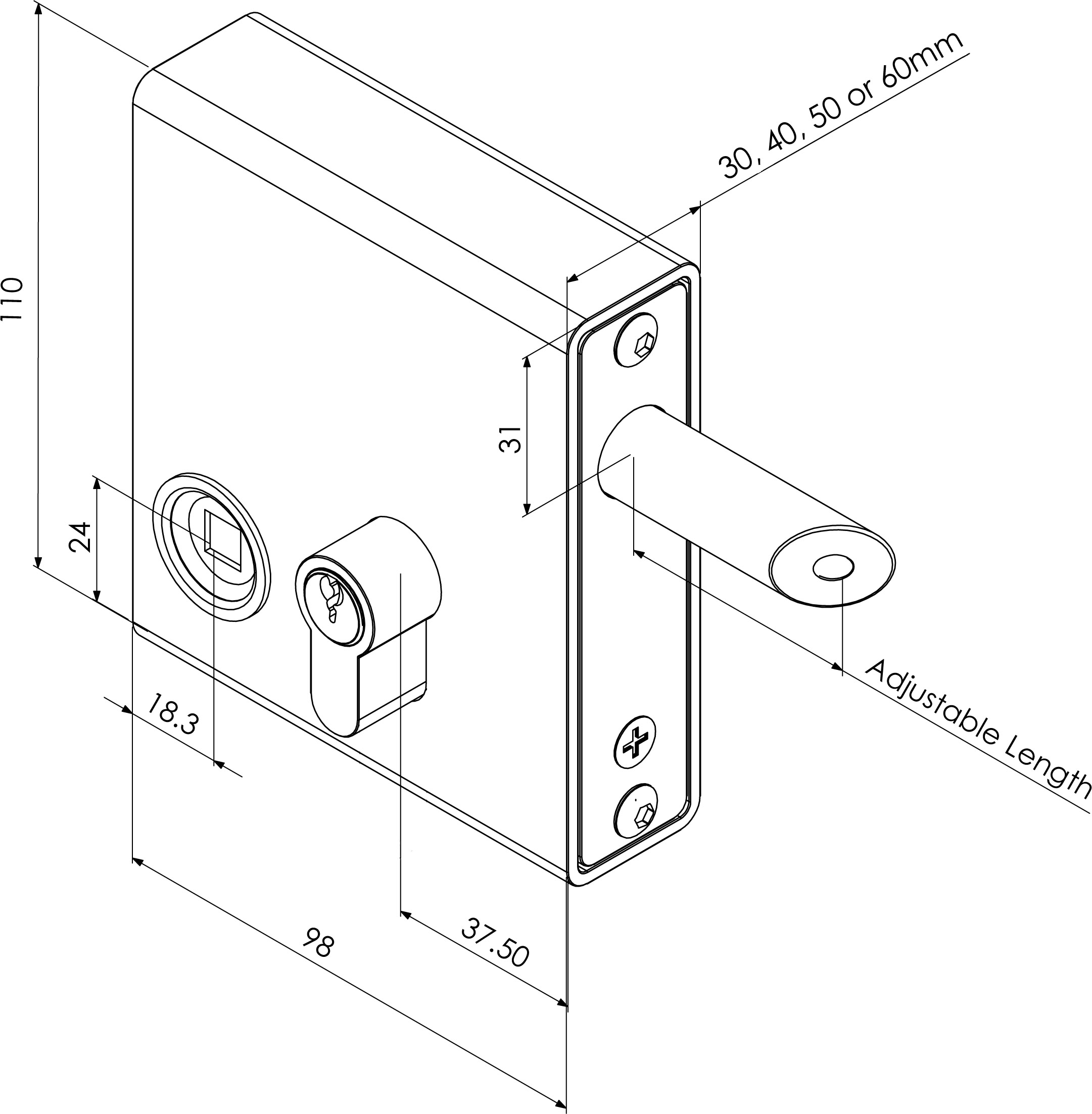

- Available in 4 widths to suit popular gate frame sizes – 30mm, 40mm, 50mm and 60mm
- Supplied with gate post strike plate
- Discover our range of compatible gate lock handle options available
Product Code
SWLD1630 – 30mm wide gate frames
SWLD1640 – 40mm wide gate frames
SWLD1650 – 50mm wide gate frames
SWLD1660 – 60mm wide gate frames
Included in the box
1x3mm hex key
M5 fixing bolts
Latchbolt
Strike plate (self-drilling fasteners)
A set of keys (3)
