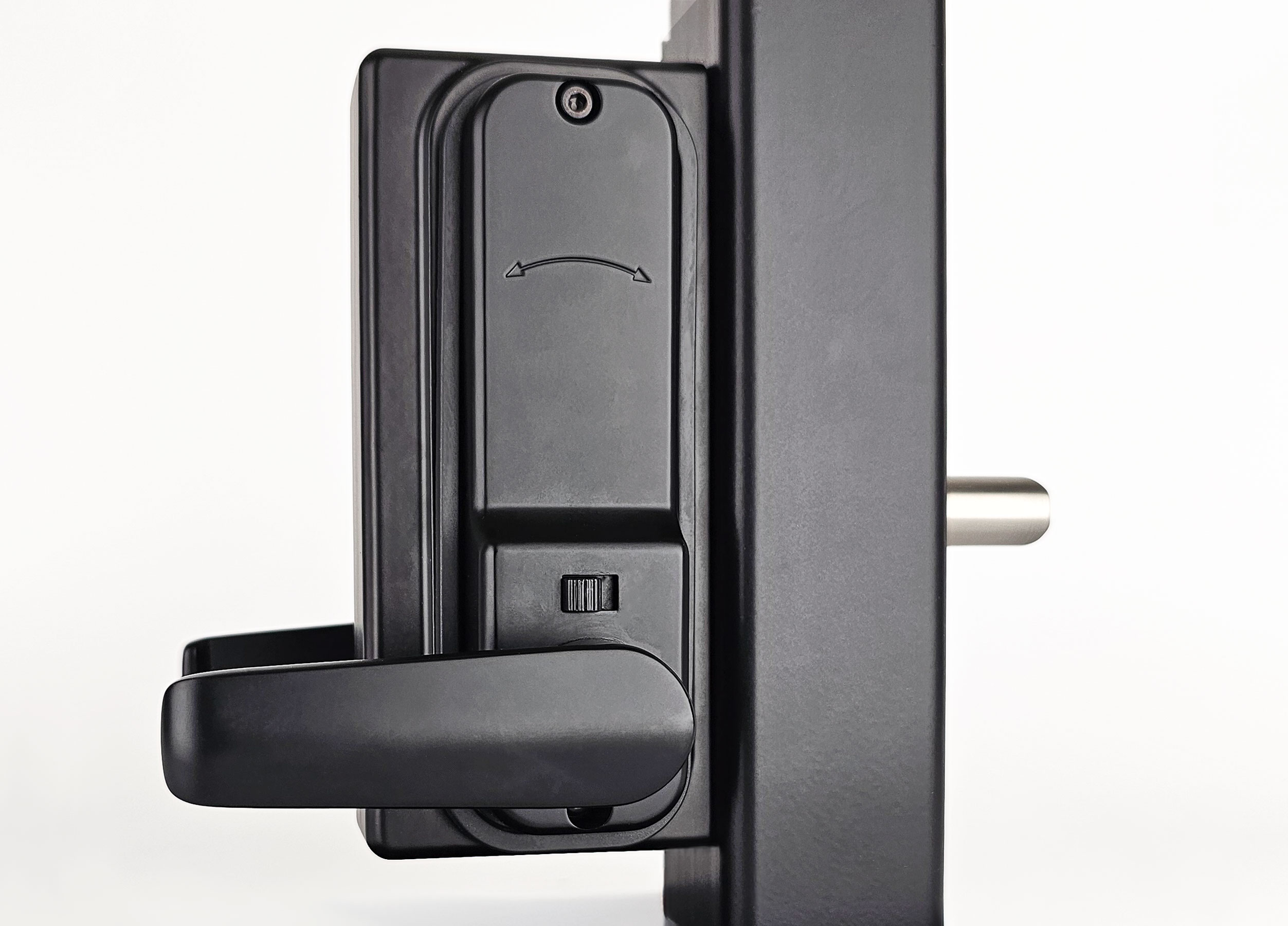

The Superlock 2.0 Delta Handle has been upgraded to deliver a sleeker, smoother and effortless look. The digital gate lock features a mechanical keypad with handles that are designed to be easily operated by those with limited dexterity allowing for an easier installation of the lock itself.

Refined Handle Design

The redesigned low-profile handles give the lock a smoother, sleeker finish offering improved aesthetics and user comfort.

Upgraded Internal Mechanism

The inside components were upgraded to enhance smoother performance and greater longevity under frequent use.

Effortless Operation

The ergonomic handle design makes opening and closing of the gate lock effortless.

Anti-Climb Handles

The handles shape is designed to prevent them being used as a foothold for climbing over the gate ensuring unwanted guest stay out.

Strong One-Piece Casing

The new casing is built from a single-body design thus eliminating joints and welds ensuring maximum strength and durability.

Other features:

• Secure hold – Stainless steel latchbolt which latches 15mm into the gate post for maximum holding strength
• Convenient – gate lock features a rear button which holds the latch open when required.
• Two frame options – 1030 for 10 to 30mm flat bar or box section gate frames and 4060 for 40 to 60mm gate frames
• Use with the Superlock keep to increase security and product life – included in the box is a standard strike plate, to secure the latch more thoroughly you will need a Superlock Keep

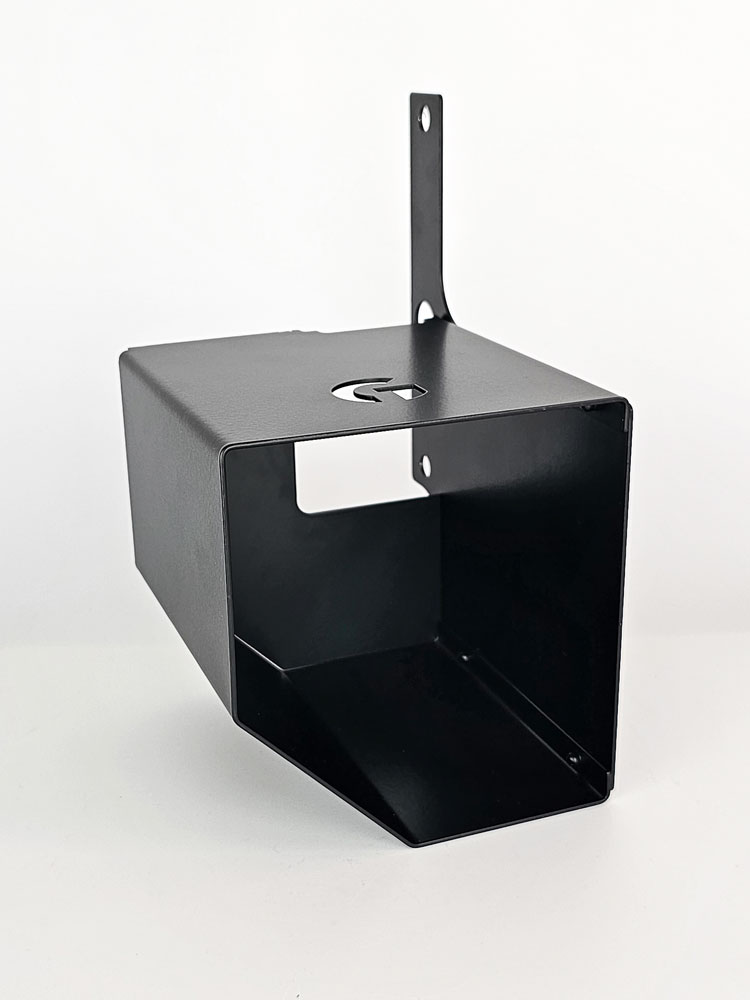

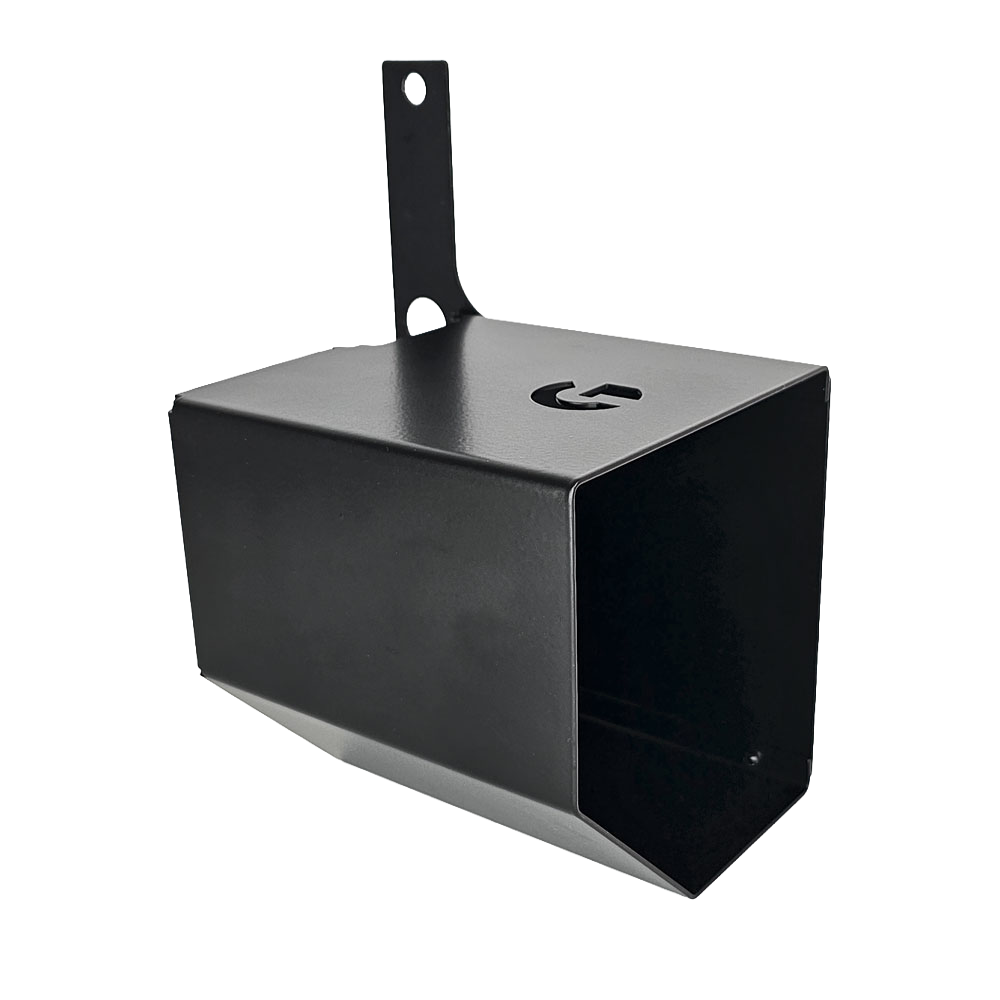

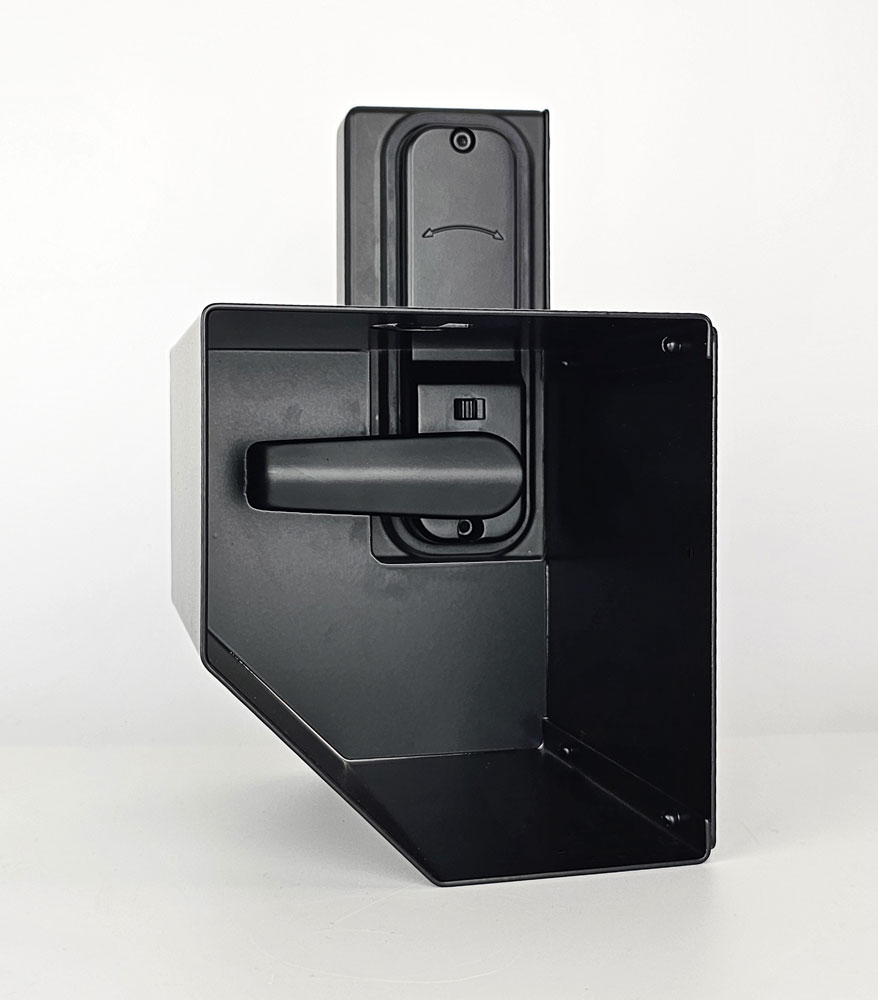

• Compatible with the Superlock Lever Handle Security Shroud for extra security
• Easy to install – simply drill three holes into the gate frame and bolt on, see how easy it is: Installation video

Product Code

BDGSD1030L – For 10-30mm gate frames, Left hand
BDGSD1030R – For 10-30mm gate frames, Right hand
BDGSD4060L – For 40-60mm gate frames, Left hand
BDGSD4060R – For 40-60mm gate frames, Right hand

Included in the box

2.5mm hex key + 3mm hex key
M8 fixing bolts
Face plate
Latchbolt
Strike plate (self-drilling fasteners)
Code changing pack

Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.

The upgraded Superlock 2.0 Delta Handle is designed to be sleeker, smoother and effortless, this upgrade enhances greater longevity under frequent use. The digital gate lock features a mechanical keypad with handles that are designed to be easily operated by those with dexterity issues and allows for an easier installation of the lock itself.

What’s New with Superlock 2.0 Delta Handle?

Refined Handle Design

Features a new sleek, low-profile handles which offer improved aesthetics and user comfort.

Enhanced Internal Mechanism

The inside components got an upgrade too, ensuring smoother performance and greater longevity under frequent use.

User-Friendly Operation

The gate lock handles feature an ergonomic design making the opening and closing of the gate lock effortless.

Anti-Climb Handles

Additionally, the handles are designed to prevent them being used as a foothold for climbing over the gate meaning that you can have a peaceful mind as the gate lock will ensure unwanted guest stay out.

Seamless One-Piece Casing

The new casing is built from a single-body design thus eliminating joints and welds ensuring maximum strength and durability.

Other features:

• Secure – Stainless steel latchbolt which latches 15mm into the gate post for maximum holding strength
• Convenient – gate lock features a rear button which holds the latch open when required.
• Available in two sizes – 1030 for 10 to 30mm flat bar or box section gate frames and 4060 for 40 to 60mm gate frames
• Use with the Superlock keep to increase security and product life – included in the box is a standard strike plate, to secure the latch more thoroughly you will need a Superlock Keep
• Easy to install – simply drill three holes into the gate frame and bolt on, see how easy it is: Installation video

Product Code

BDGD1030L – For 10-30mm gate frames, Left hand
BDGD1030R – For 10-30mm gate frames, Right hand
BDGD4060L – For 40-60mm gate frames, Left hand
BDGD4060R – For 40-60mm gate frames, Right hand

Included in the box

2.5mm hex key + 3mm hex key
M8 fixing bolts
Code changing pack
Face plate
Latchbolt
Strike plate (self-drilling fasteners)
Code changing pack

Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
