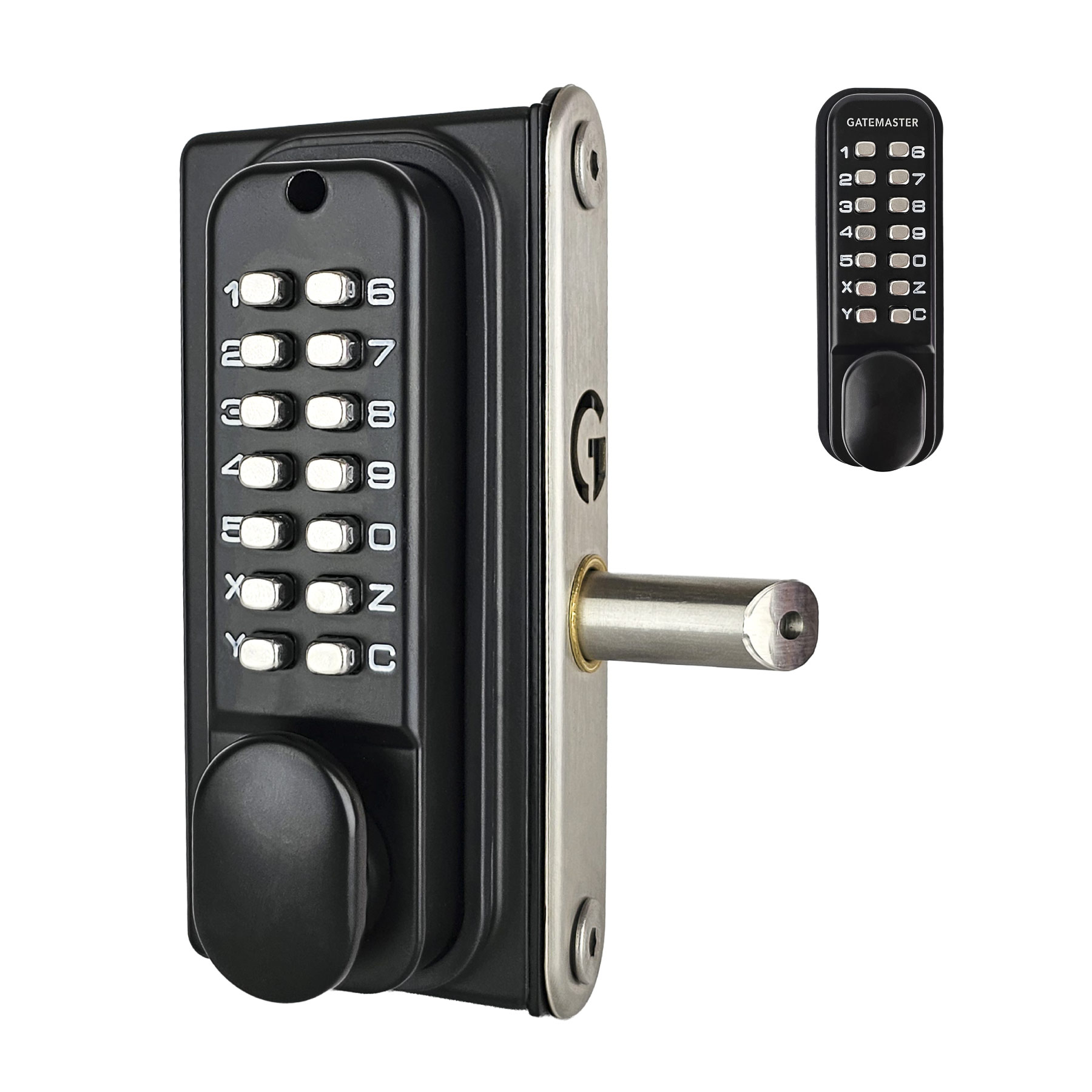

Superlock 2.0 Code Gate Lock | Surface Mounted | Double-Sided Keypad

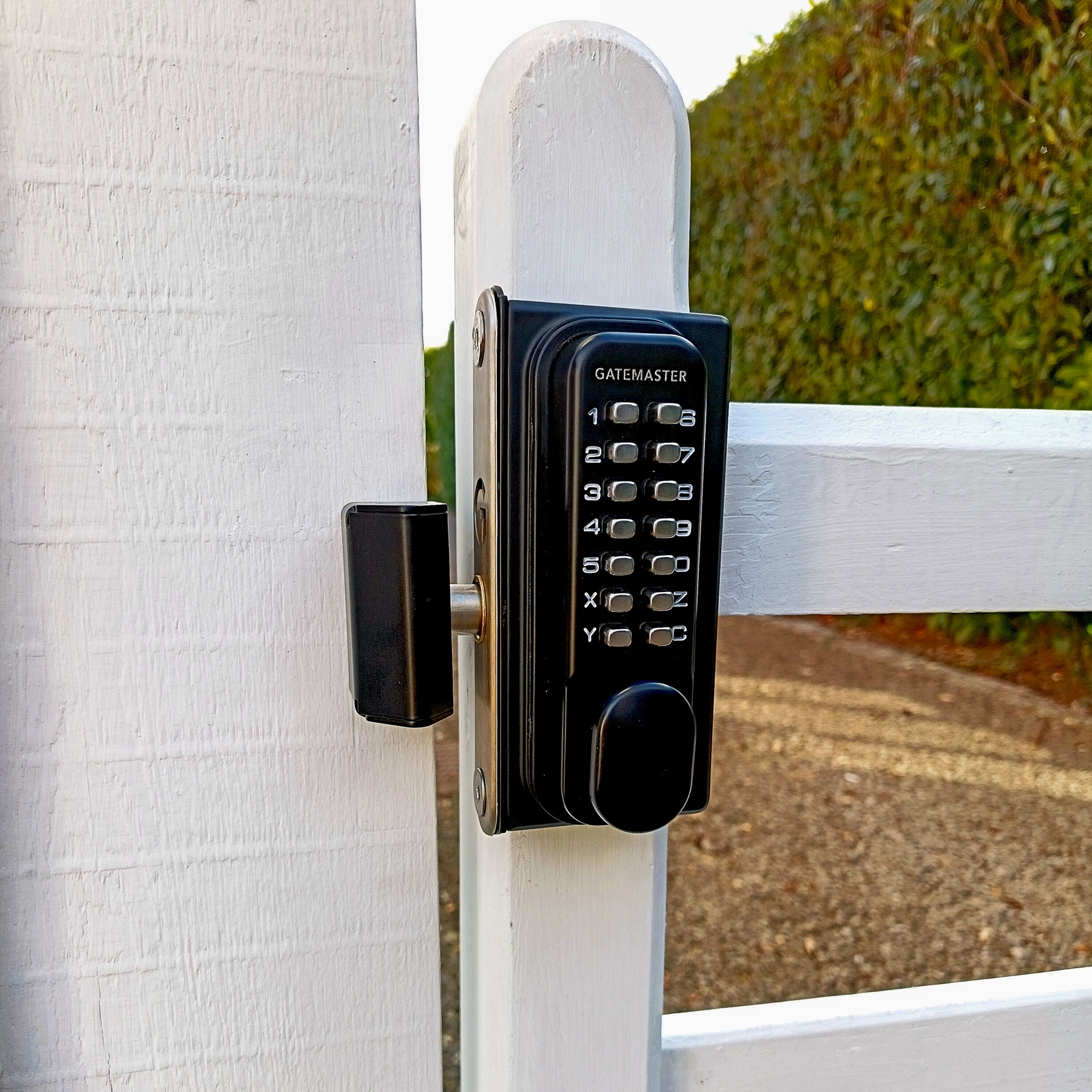

This fully mechanical digital lock offers high quality with the one-piece construction and adapted fixings made for wooden gates. A simple and secure solution for access control on your timber gate.

• Corrosion resistant – the lock features marine grade keypads and powder-coated die-cast casing
• No power needed – the mechanical keypad requires no power and can be installed anywhere

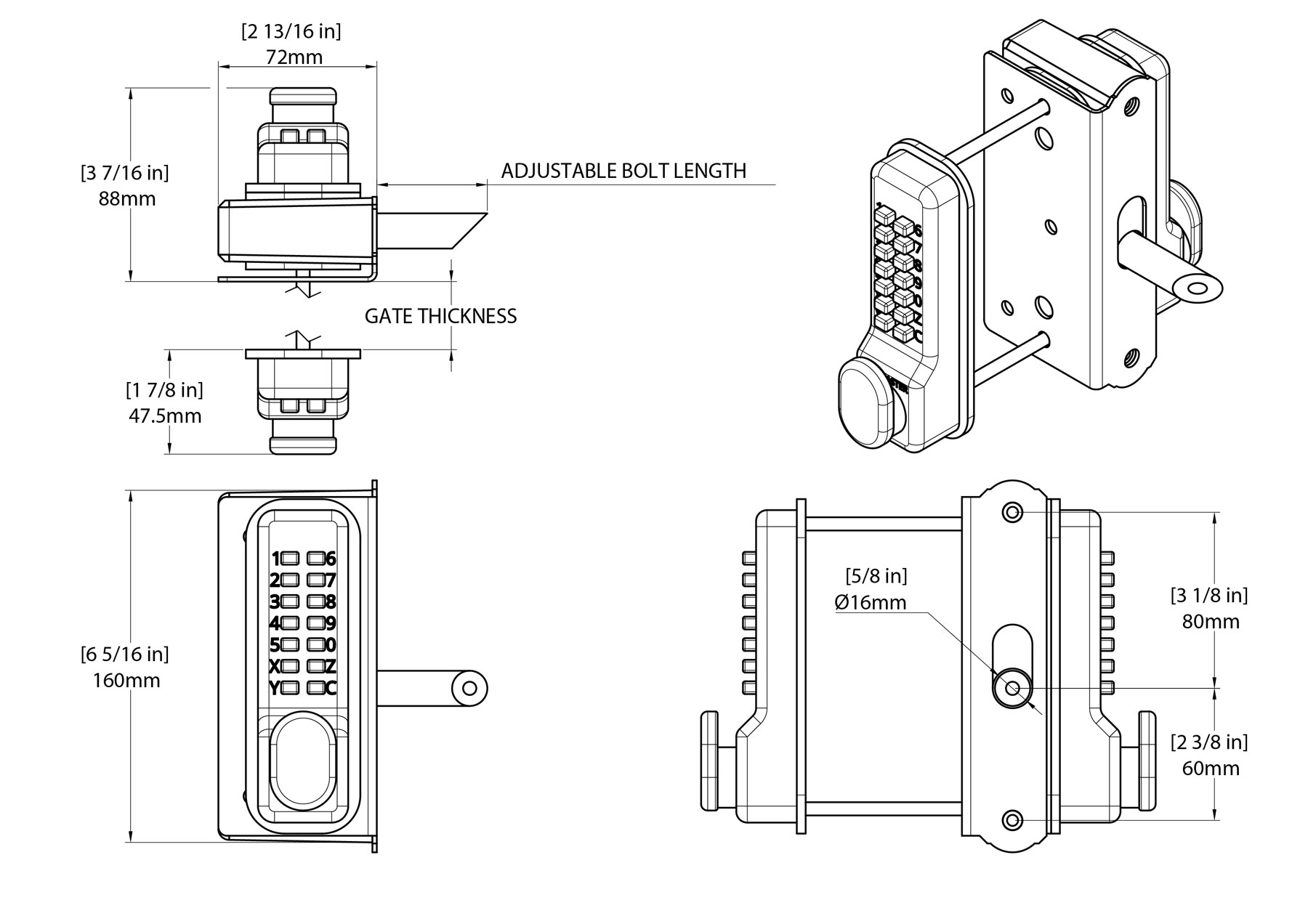

• Adjustable latch bolt – adjust the latch bolt in length for a precise fitting to your wooden gate
• Auto-latching – close the gate and the latch bolt latches into the gate frame. To open the gate – enter the code and turn the handle

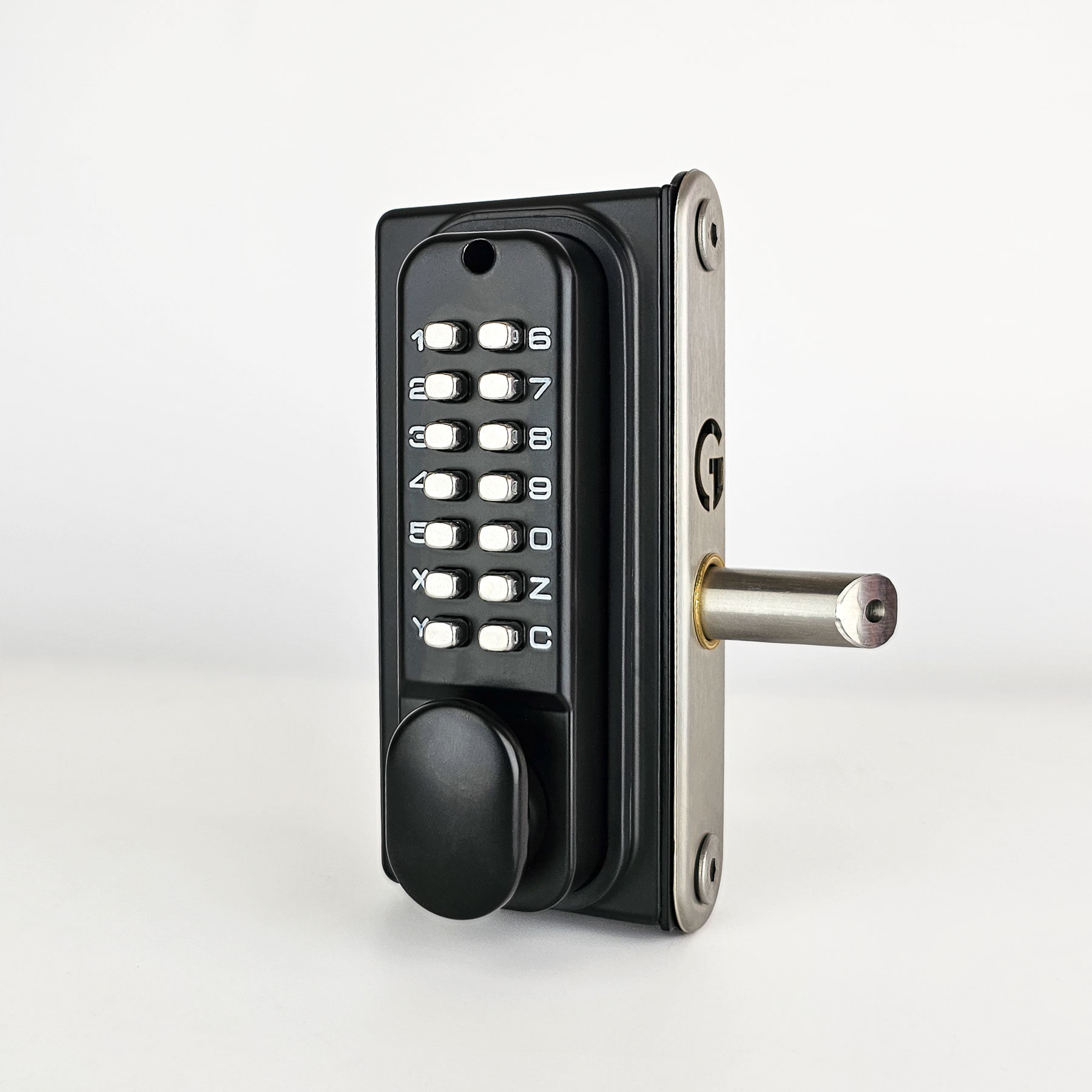

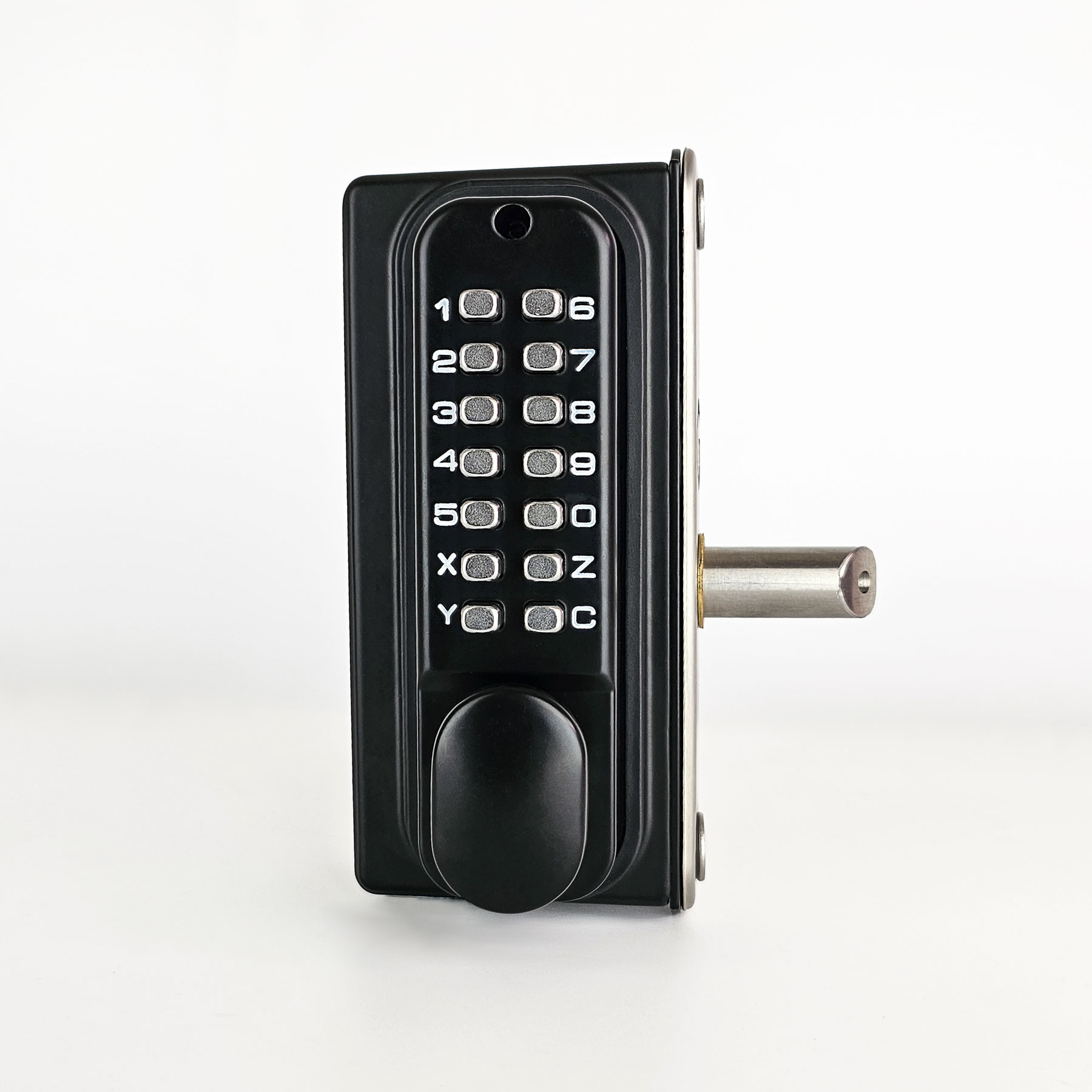

• Keypad on both sides – also available as a keypad and rear handle
• As standard the BDGW fixings are suitable for gates up to 3″ thick. If you have a gate thicker than 3″, get in touch as you will need the extension kit (BDGWE140).

Product Codes

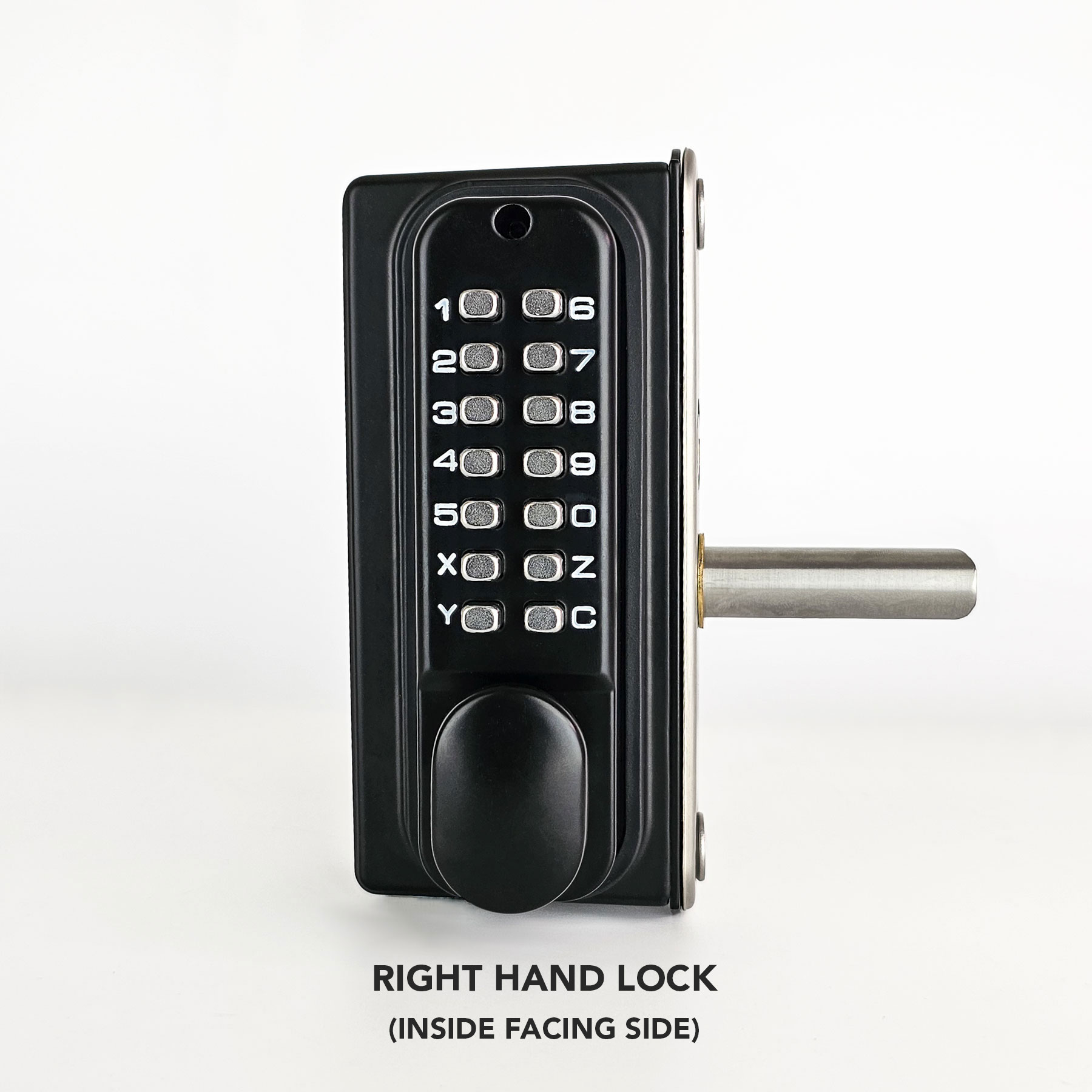

BDGWL – Left handed
BDGWR – Right handed

Find out the handing you need by reading this handing guide.

Previous versions

Download the original BDGW Spec Sheet

Included in the box

2.5mm + 3mm hex keys
M8 fixing bolts
Face plate
Latchbolt
Gate bracket with fixings
Keep with fixings
Outward opening keep conversion plate
Code changing pack

Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
