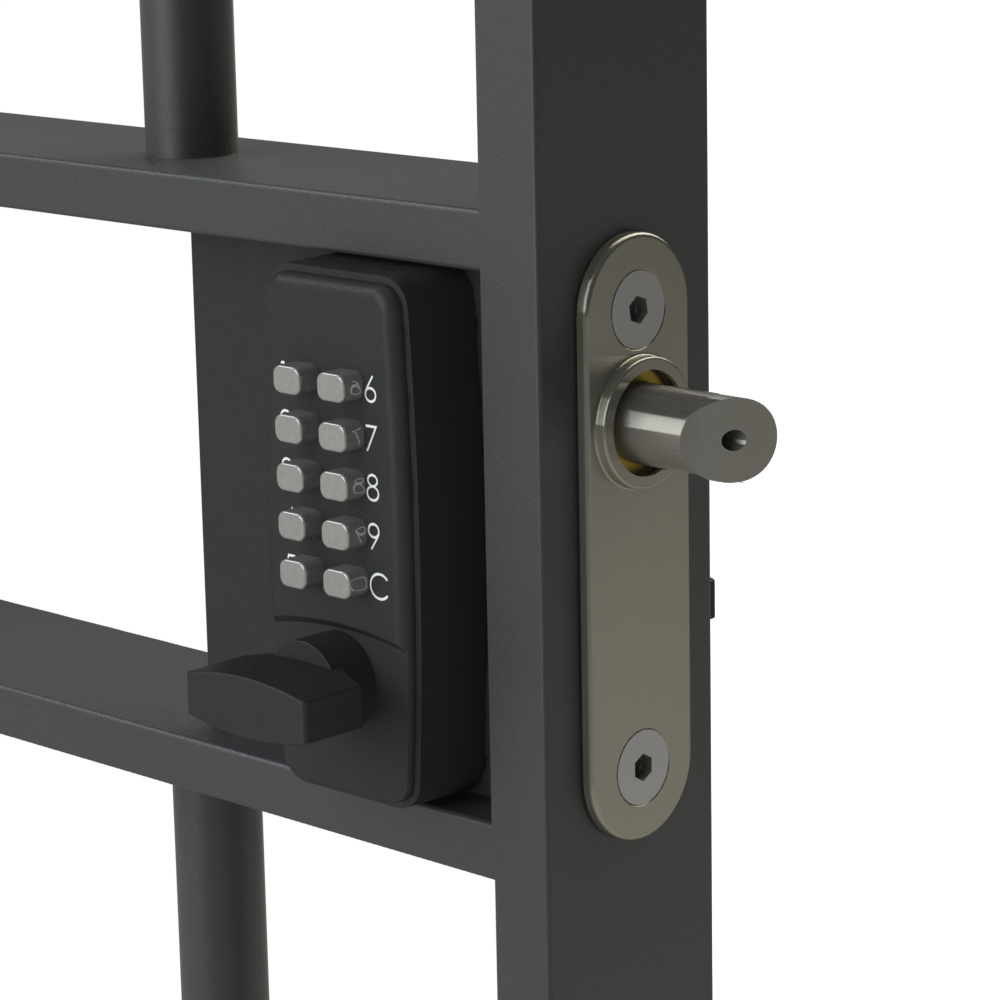

This digital gate lock combines the convenience of a mechanical keypad with the ease of installation of the bolt on lock range. To fit simply drill three holes in the gate frame and bolt the lock on.

• No power needed – Mechanical keypads for a quick and easy install
• Secure – Latch bolt projects up to 7/8″ into the gate post which increases security and gives more tolerance
• Long lasting – Brass bearing plate supports the latch bolt reducing wear and increasing product life
• Adaptable – The latch bolt can be adjusted in length and set to left hand or right hand
• Durable – Tested to over 1000 hours salt spray, this product will survive the elements
• Auto-latching – Close the gate and the latch bolt latches into the gate frame. To open the gate – enter the code and turn the handle.
• Keypad on both sides – Also available as a Keypad and rear handle

You can change the code on this combination lock by following our guide.

Product Code

DGL01 – 1/2″ – 1-1/4″ gate stile
DGL02 – 1-1/2″ – 2-1/4″ gate stile

The digtal gate lock single sided has a convenient mechanical keypad and a free exit turn handle on the inside.  The lock is easy to install simply drill 3 holes in the gate frame and bolt the lock on with the fixings supplied.  Digital gate locks are a convenient method of locking a gate as they require no keys

• No power needed – Mechanical keypads for a quick and easy install
• Secure – Latchbolt projects up to 20mm into the gate post which increases security and gives more tolerance
• Long lasting – Brass bearing plate supports the latchbolt reducing wear and increasing product life
• Adaptable – The Latchbolt can be adjusted in length and both outward and inward opening gates
• Durable – Tested to over 1000 hours salt spray, this product will survive the elements
• Auto-latching – close the gate and the latchbolt latches into the gate frame.
• Keypad on one side, handle on the other – Also available with a Keypad on both sides

Product Code

DGLS01L – 1/2″ – 1-1/4″ square tube, left hand
DGLS01R – 1/2″ – 1-1/4″ square tube, right hand
DGLS02L – 1-1/2″ – 2-1/4″ square tube, left hand
DGLS02R – 1-1/2″ – 2-1/4″ square tube, right hand

Find out the handing you need by watching our new handing guide video.
