Bolt-On Locks for Metal Gates

A bolt-on gate lock is a security lock that is installed by bolting it through the frame of the metal gate using fixing screws. This allows a quick and convenient alternative to welding a lock onto the gate.

Bolt-on locks are fixed with bolts/screws which makes them easier and quicker to install on metal gates and they look symmetrical giving them a nice appearance on your gate lock.

Here’s how they work:

Deadlock – Locks and unlocks with a key only. The bolt stays put until you turn the key, providing a high level of security.

Latch – Closes when you push the gate shut, but doesn’t lock. Anyone can open it from either side using the handle. Convenient for areas that don’t need security.

Keylatch – Closes and locks automatically when you push the gate shut. You’ll need a key to open it. Security without having to remember to lock it.

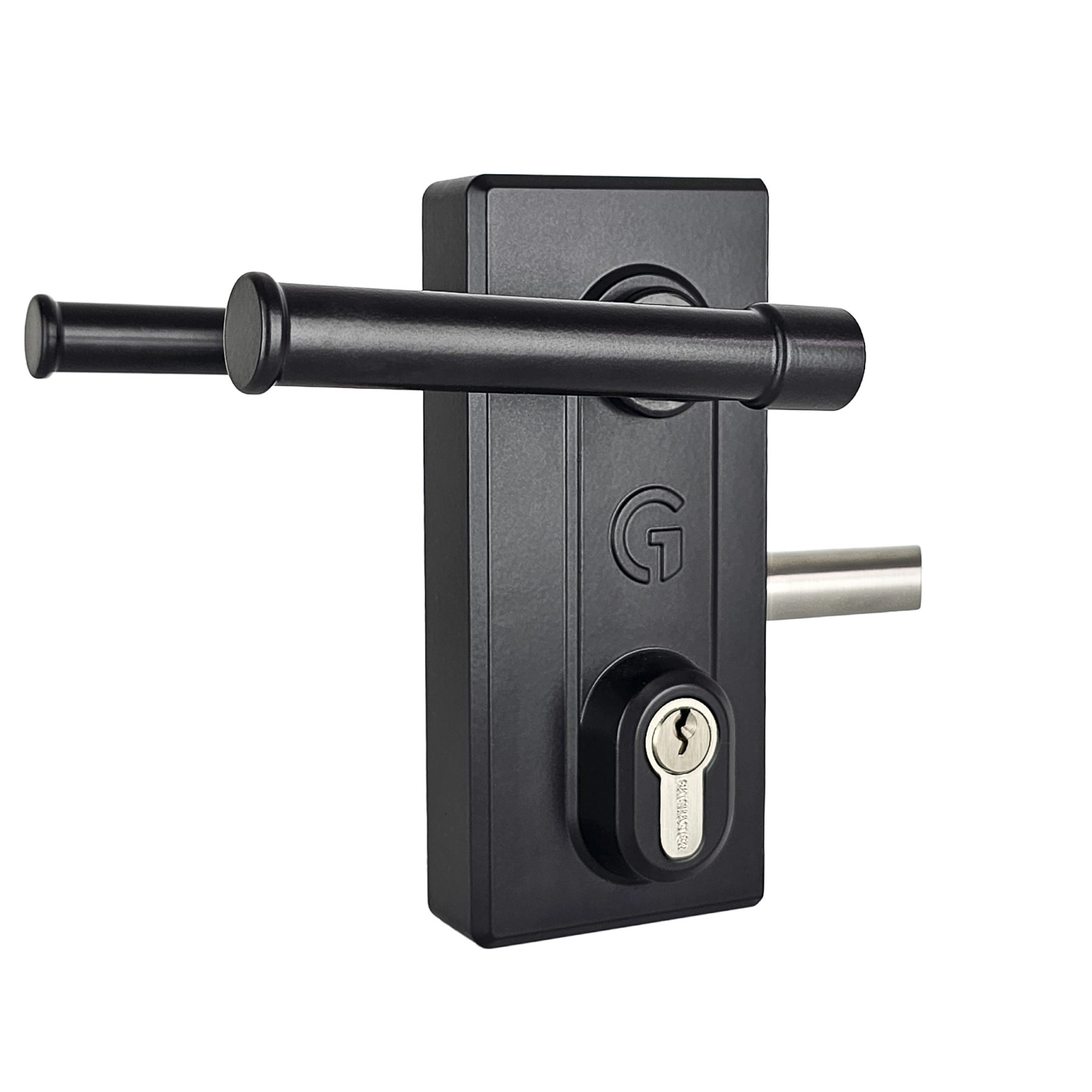

Latch Deadlock (combination) – Featuring a handle it gives you both options. The gate closes automatically but stays unlocked until you turn the key. Once locked, it works like a deadlock. Our BLD bolt-on gate lock is a popular choice.

Our bolt-on locks are designed to be easily installed by drilling a few holes and screwing them into place. Simply follow the installation instructions which can be found on the spec sheets for the specific lock you have purchased.

Our Superlock 2.0 range now comes with a 5 year warranty. Our Select Pro range and Sliding gate lock range comes with the standard 12 month warranty.

The components included in the box will vary depending on what type of bolt-on lock you get from us. Please refer to the bottom of the page of the specific product to check, or refer to the spec sheets. Additionally, if you are still having trouble contact us and we will be more than happy to assist you.

Our mechanical gate locks are built to last ensuring higher security levels and durability compared to traditional gate locks. You can pair some of our locks with a shroud and upgraded keeps for extra protection which can be found in the safety & security product section.

Our latchbolt size varies depending on the type of gate frame you have. Product code “1030” means the length bolt is long enough to fit 10mm-30mm gate frames, where as product code “4060” means the length bolt is long enough to fit 40mm-60mm gate frames.

The locks in our bolt-on category are not compatible with wooden gates however our surface mounted gate locks are specifically designed for timber gates. Check out our gate locks for wooden gates here.

The tools needed to install a bolt-on gate lock vary depending on the lock itself. Most of our bolt-on gate locks come with fixing bolts, face plates, strike plate and latchbolt or deadbolt however for a more specific description refer to the “included in the box” section underneath the gate locks.
